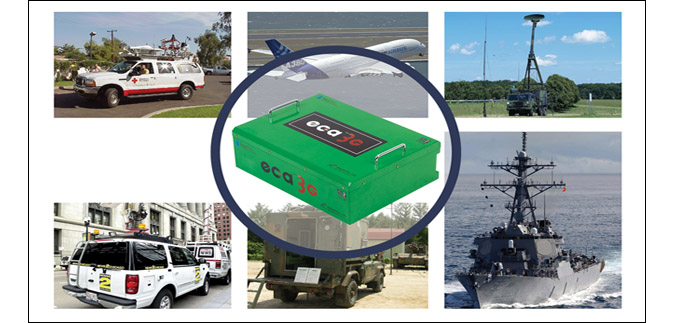

Military communication operation vehicle, mobile base station, aircraft, naval vessels, mobile broadcasting vehicle, mobile testing facilities
Facility in the mobile vehicle : simply install and use in the vehicles such as communication and operation which need grounding
Mobile facilities : For the purpose of quick grounding for the mobile communication systems which could not make grounding to the earth
Product code Product name Standard Voltage
/breaker		 Place to use
39121613-21084421 CM-DC-02-20M DC / 24V / 120KA / 20MJ 24V / 30A Vehicles for
communication Small
39121613-21084422 CM-DC-04-30M DC / 48V / 120KA / 30MJ 48V / 30A Vehicles for
communication Small
39121613-21084423 CM-12-10-30M 1Ø2w / 110V / 120KA / 30MJ 110V / 30A Vehicles for
communication Medium
39121613-21084424 CM-12-20-60M 1Ø2w / 220V / 240KA / 60MJ 220V / 50A Vehicles for
communication Large
  • Voltage / breaker : Voltage is operation power voltage, breaker A in dicates main power breaker capaity of swichboard in facility room to be protected
    example : 110V / 30A indicates that operation power voltage - 110V and the capacity of switchboard main breaker in the place to install eca3G is 30A
  • MJ (Mega joule) : work energy(Joule) = P×Dt = resistance × current2 × time
