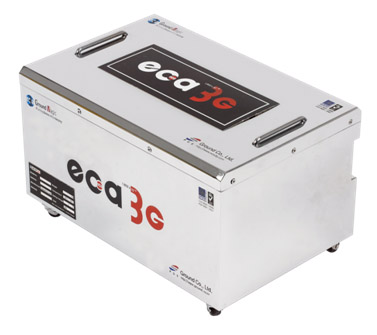

Protect higt-tech electric-electronic communication information facility from lightning strike, surge, induced lightning surge , so secure stable equipment operating function
Install when neutralize and eliminate surge current incoming through electric power cable, and communication cable
Product code Product name Standard Voltage
/breaker		 Place to use
39121613-21084439 SM-12-10-30M 1Ø2w / 110V / 120KA / 30MJ 110V / 30A Device scale Small
39121613-21084440 SM-12-20-60M 1Ø2w / 220V / 120KA / 60MJ 220V / 30A Device scale Small
39121613-21084441 SM-33-20-60M 3Ø3w / 220V / 160KA / 60MJ 220V / 50A Device scale Medium
39121613-21084442 SM-33-38-90M 3Ø3w / 380V / 160KA / 90MJ 380V / 75A Device scale Medium
39121613-21084443 SM-34-38-90M 3Ø4w / 380V / 240KA / 90MJ 380V / 100A Device scale Large
  • Voltage / breaker : Voltage is operation power voltage, breaker A indicates main power breaker capacity of swichboard in facility room to be protected
    example : 110V / 30A indicates that operation power voltage - 110V and the capacity of switchboard main breaker in the place to install eca3G is 30A
  • MJ (Mega joule) : work energy(Joule) = P×Dt = resistance × current2 × time
